"The turn table for vehicles" which is indispensable in difficult places to rotate or pass through for vehicles is renewed.
The new turn table is developed with concepts like "low cost, high quality, quick delivery and compact".

We prepare the turn table which surface is applied SUS (Stainless) means.
Contrary to the conventional type it does not require "a pit mound" and it is not "a round type" pit.
The depth of pit for both indoor and outdoor applies "400mm (above water level)".
Installation is finished within "a day".

Please feel free to inquire us.

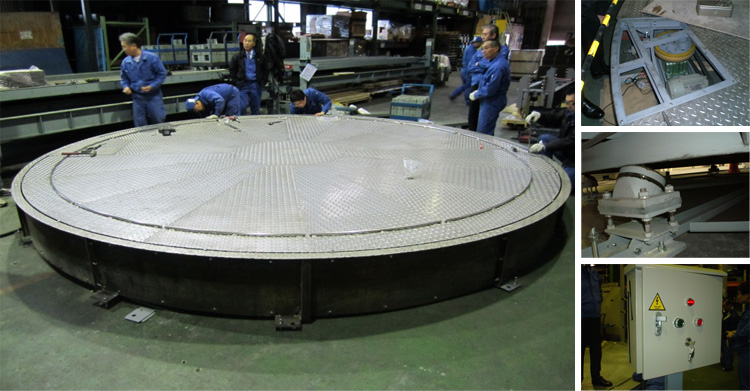

Turn Table

Comparison Table with Traditional Type

		New Type	Traditional Type
Standard Specification	Type	Electric Friction Drive
	Speed	1.1/1.4RPM 50/60Hz	1.1/1.3RPM 50/60Hz
	Electric Motor	0.75kw 4P 1Unit	0.4kw 4P 1Unit
	Table Materials	SUSSteel Plate Product 4t C-75-×40×4	Steel Plate Product 4.5t C-75×40×5
	Rail	FB-80×20	□50
	Wheel	inclined type Special Wheel(Made From Iron)	MC Nylon
	Power Source	3φ 200v 50/60Hz
	Operation Method	Pushbutton Operation
Option	Inverter	Existing	Existing
	Vibration Isolation Type	Standard	Existing
	Low Volume Type	Under Consideration (Wheel: MC Nylon)	Standard
Installation-related	Depth of Pit	400mm	450mm(Outdoors550mm)
	Pit Mound	Disused	Need for 8 to 10 Place
	Pit Shape	Any Shape (Square)	Round
	Finish	Back-Filling after Finishing Installation	Install Joint Bar(Construction Work), Back-Filling after Installation of Corner Angle
	Electric Work	Undergrounding Electric Plumbing
	Installation, Adjustment	For One Day	For Two Days

New Type Turn Table Specification

4000Φ
Type	Electric Friction Drive
Maximum Capacity	2500kg
Speed	1.1/1.4RPM 50/60Hz
Electric Motor	0.75kW 4P 1Unit
Table Diameter	Φ 4000
Rail Diameter	Φ 3470
Table	C-75×40×4 SUSCheckered Plate 4t
Rail	FB-80×20
Wheel	Φ135 inclined type Special Wheel 8pieces
Operation Method	Pushbutton Operation
Rotation Direction	Right, Left
Power Source	3Φ 200V 50/60Hz
Guidling	Φ 3600

4500Φ
Type	Electric Friction Drive
Maximum Capacity	2500kg
Speed	1.1/1.4RPM 50/60Hz
Electric Motor	0.75kW 4P 1Unit
Table Diameter	Φ 4500
Rail Diameter	Φ 3970
Table	C-75×40×4 SUSCheckered Plate 4t
Rail	FB-80×20
Wheel	Φ135 inclined type Special Wheel 8pieces
Operation Method	Pushbutton Operation
Rotation Direction	Right, Left
Power Source	3Φ 200V 50/60Hz
Guidling	Φ 4100
