Elevator
Car Lift Traverser

* Mosto Appropriate for Large Parking Lot
* Construction Cost for One Car is Very Reasonable
* Taking In and Out of Car Can Be Done in Short Time
* Safety Device is Fully Equipped
* Maintenance Cost is OK with Low Badget

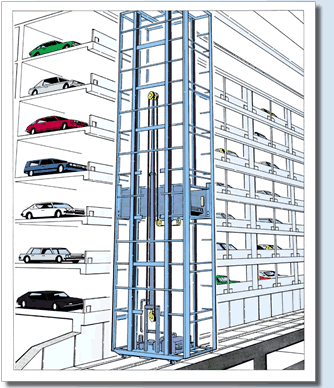

It is a crane type car lift aiming to use in relatively large parking lots.

The car is moved with the steel tower as the hoistway in traverse direction and in addition the cage of elevator go up and down, and then the car is led to the nearest vacant parking space.
Namely assuming that the parking lot is y-axis and the steel tower is x-axis, this mechanism is that x-axis finds out vacant spaces on y-axis.
This car lift traverser can support the entire loads with bottom rails securely.This is the one and only facility in Japan and its construction cost is relatively low.
It does not convey vibration to other rooms when it is installed in general building and it is possible to control remotely by a janitor while he/she confirms the safety with TV camera.

In addition it can be used in various buildings because drivers can house their cars by themselves.
Furthermore it is possible to implement unattended operation and usable as a safe automatic parking lot when the dolly park made by DAIKO is embedded to this car traverser.

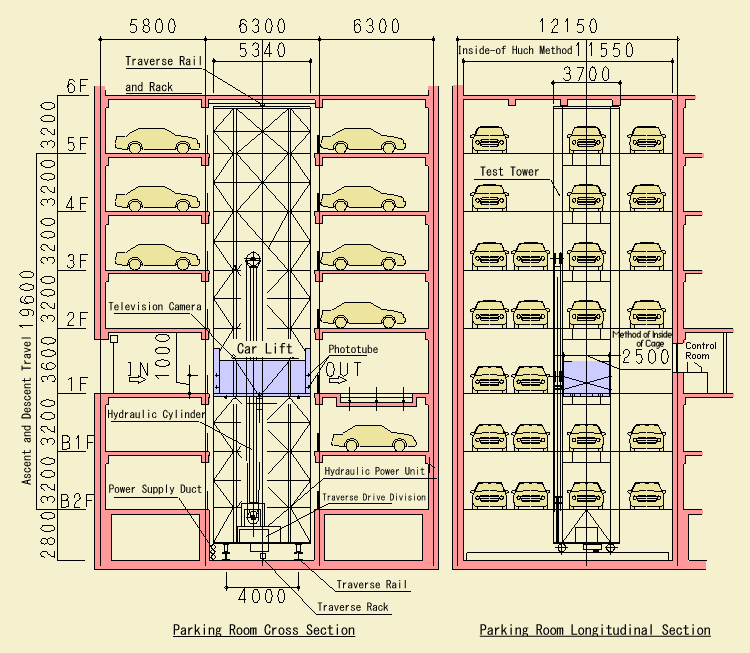

Standard Dimension Drawing
Drawing
Specification Dimension Chart

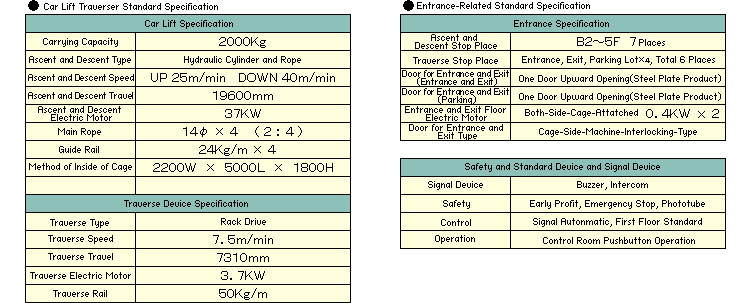

Specificaiton List(Car Lift Traverser Standard Specification/Entrance-Related Standard Specification)
Next Page
