Elevator
Dolly Park Type Car Lift

* Operation is Easy with Pushbutton Type
* Exhaust Fumes are Zero Because of No Need for Car's Running in Parking Lot.
* Building is Open Deck, it is Always Possiblt to Intake Fresh Air.
* Annoying Noise is Banished by Noiseless Drive Type.
* Entering and Leaving are All Done By Dolly, Regulation Appliance is Widely Eased.
* Car Can be Abondaned on the First Floor.
* More Than Several Ten Safety Device.

This parking facility is suited for space which has a narrow frontage and a wide depth. Furthermore drivers can abandon their cars at the entrance and then cars are handled in a completely automated manner only by pressing buttons. Janitors don't have to handle cars even if janitors are assigned.
It will be optimum solution for toll parking lots or parking lots of apartment houses.

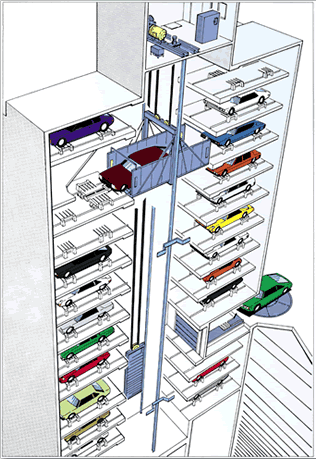

First the car should be parked at the specified place on the dolly in the dolly park mechanism.
And the next once press a button in which the occupied lamp is not lit, then the dolly lifts up the car and carries it to the elevator within the hoistway by automatic travel and the elevator carries it to the vacant space.
The parking space is equipped with multiple safety devices and silently waiting for customers until the car is taken out.
And the dolly automatically returns to the front of the entrance immediately and accepts the next car.

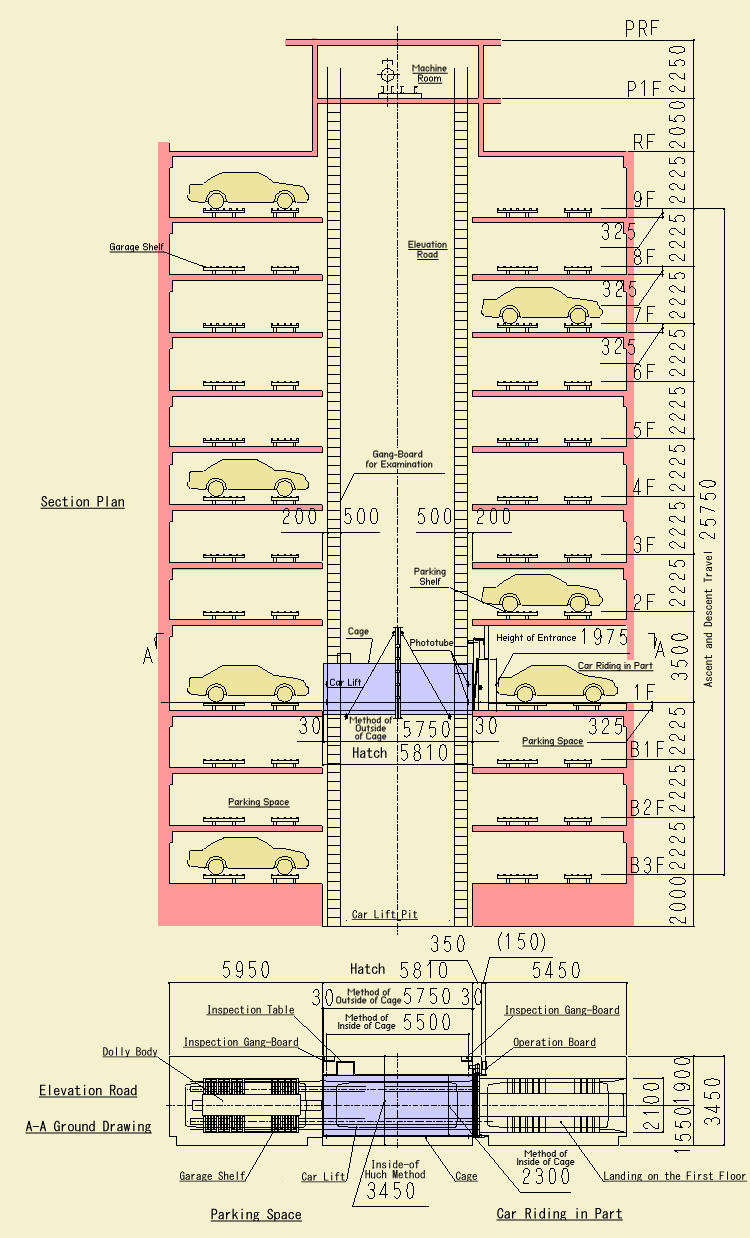

Standard Dimension Drawing
Drawing

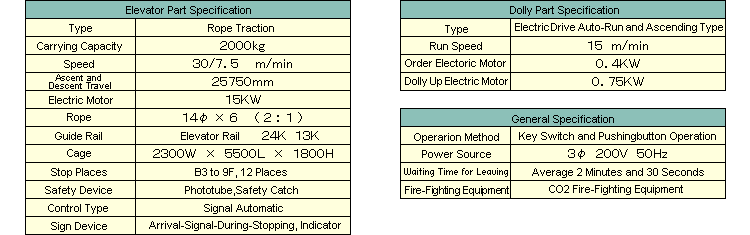

Specification Dimension Chart
Specificaiton List
