Elevator
Elevator for Standard Baggage Machine-Roomless
Rope Type, Upward Opening Door

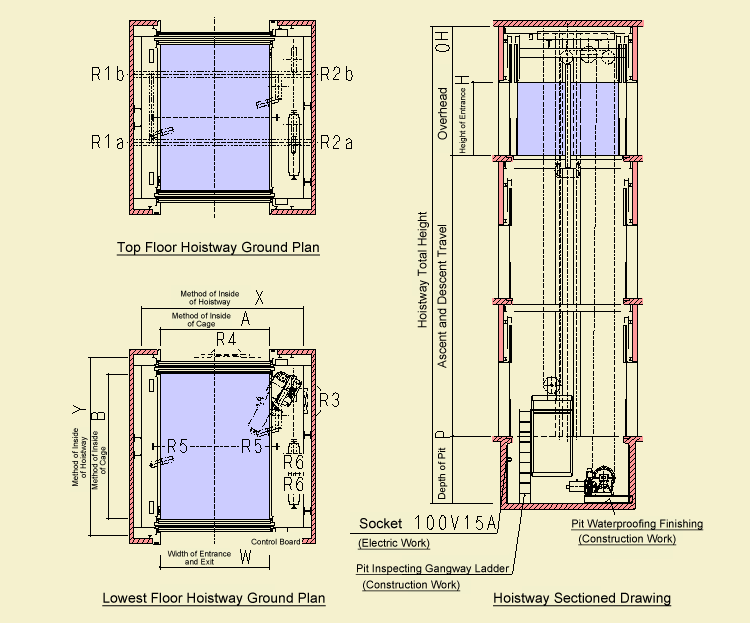

Standard Dimension Drawing
Drawing
Specification Dimension Chart

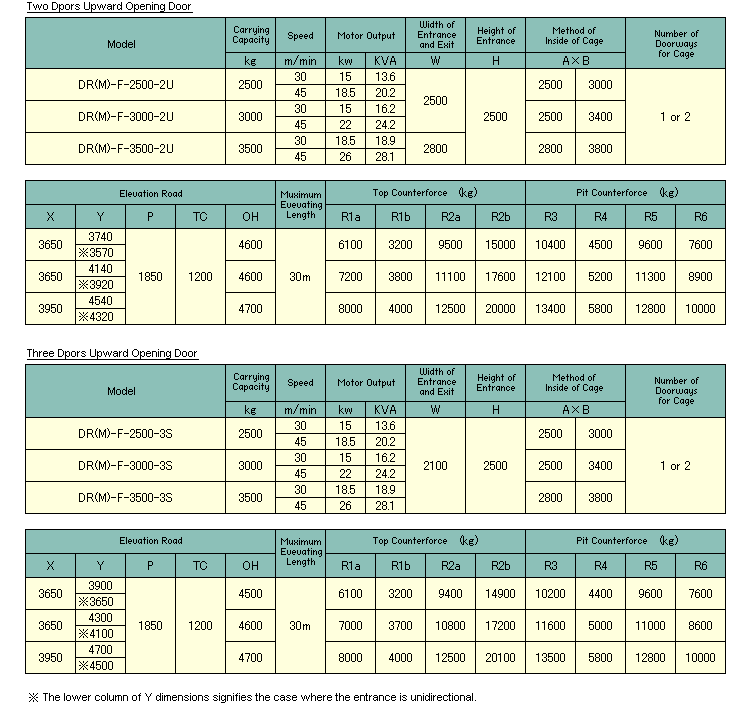

Specificaiton List(DR(M)-F-2500-2U/DR(M)-F-3000-2U/DR(M)-F-3500-2U/DR(M)-F-2500-3U/DR(M)-F-3000-3U/DR(M)-F-3500-3U)
Rope Type, Single Swinging Door

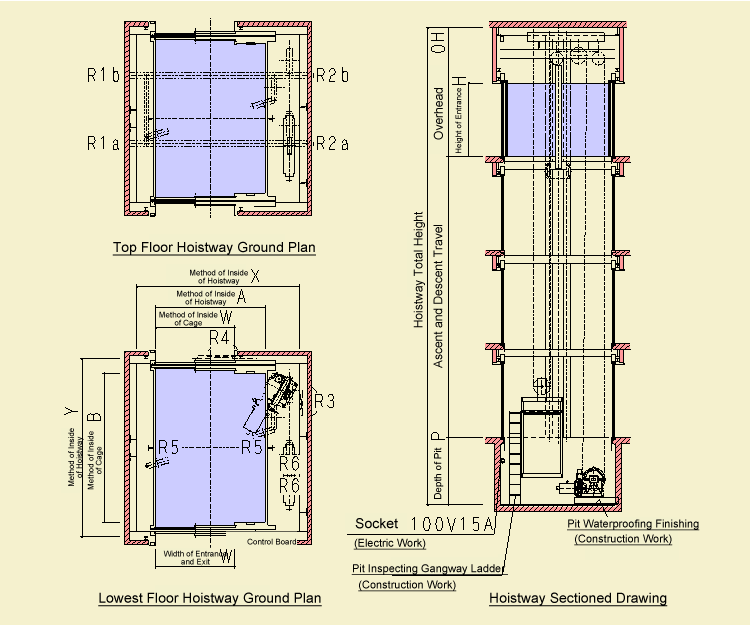

Standard Dimension Drawing
Drawing
Specification Dimension Chart

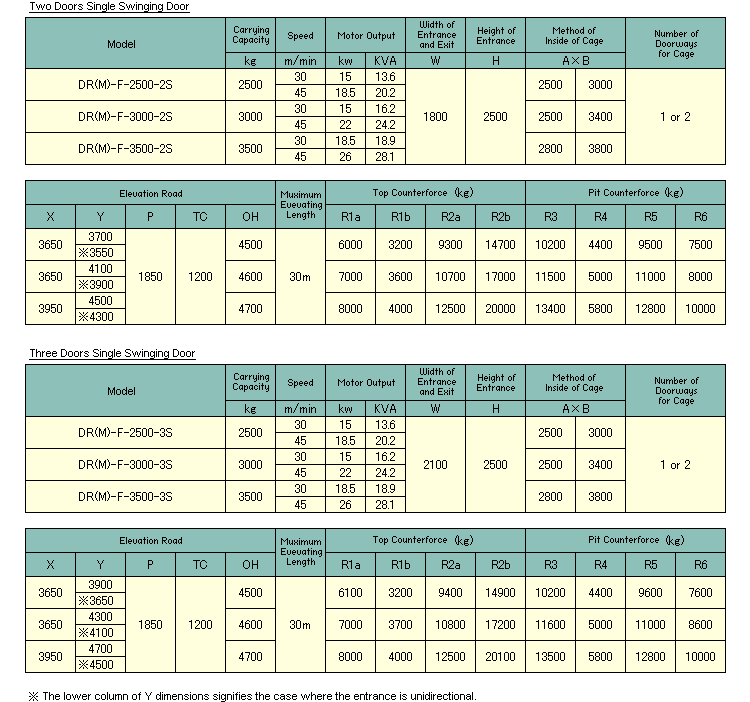

Specificaiton List(DR(M)-F-2500-2S/DR(M)-F-3000-2S/DR(M)-F-3500-2S/DR(M)-F-2500-3S/DR(M)-F-3000-3S/DR(M)-F-3500-3S)
Hydraulic, Upward Opening Door

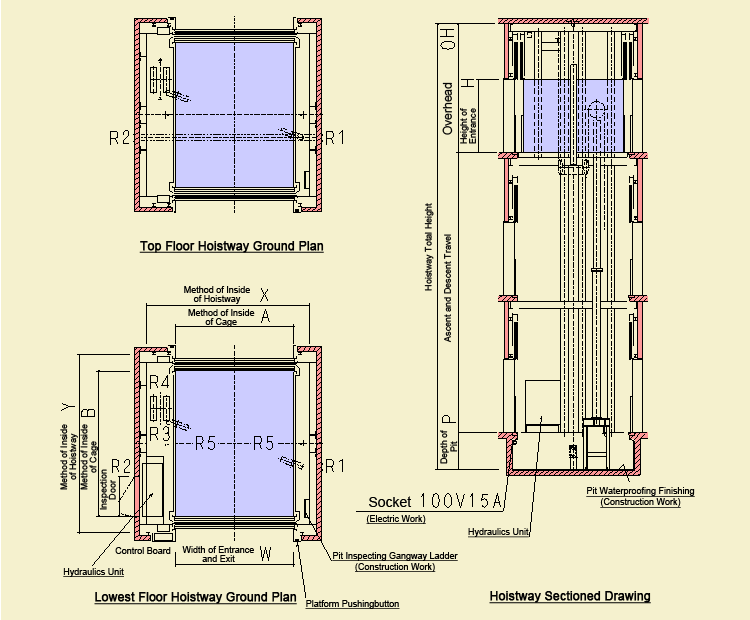

Standard Dimension Drawing
Drawing
Specification Dimension Chart

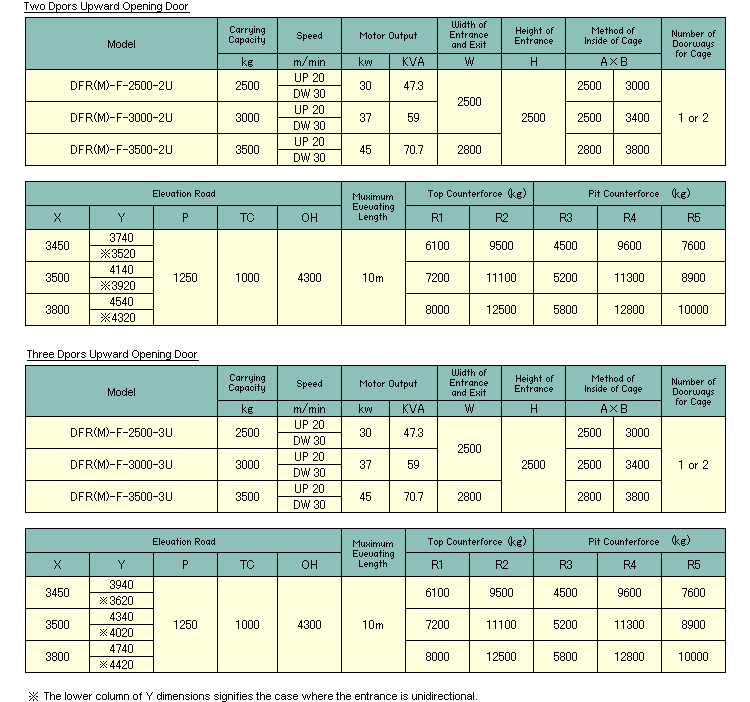

Specificaiton List(DFR(M)-F-2500-2U/DFR(M)-F-3000-2U/DFR(M)-F-3500-2U/DFR(M)-F-2500-3U/DFR(M)-F-3000-3U/DFR(M)-F-3500-3U)
Next Page
