Elevator
Turn Car Lift90°/180°

The latest version of Adobe Flash Player is required to read the content of this page.

Get Adobe Flash Player

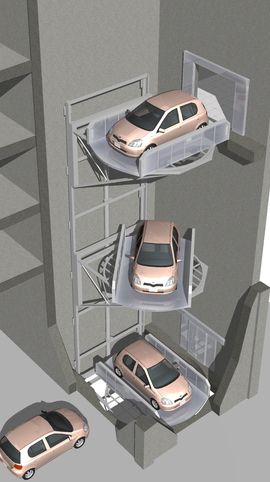

"The turn car lifts" is a rotation type car lift which enables a vehicle to go into or out of a parking lot by advancing straight.We prepare "rotation while going up and down type" which reduces transit time of cars by implementing both rotation and going up or down simultaneously, and "right angle rotation type" which enables to limit usable dimension of framework by rotating at the destination floor.It is possible to plan more smoothly when two turn car lifts are used and elevators for exclusive use for " In" and "Out" are installed respectively.

Turn Car Lift Brochure are Here⇒
(PDF/4.86MB 12page)
Turn Car Lift Brochure
Oil Pressure Closed System 90°Turning Type

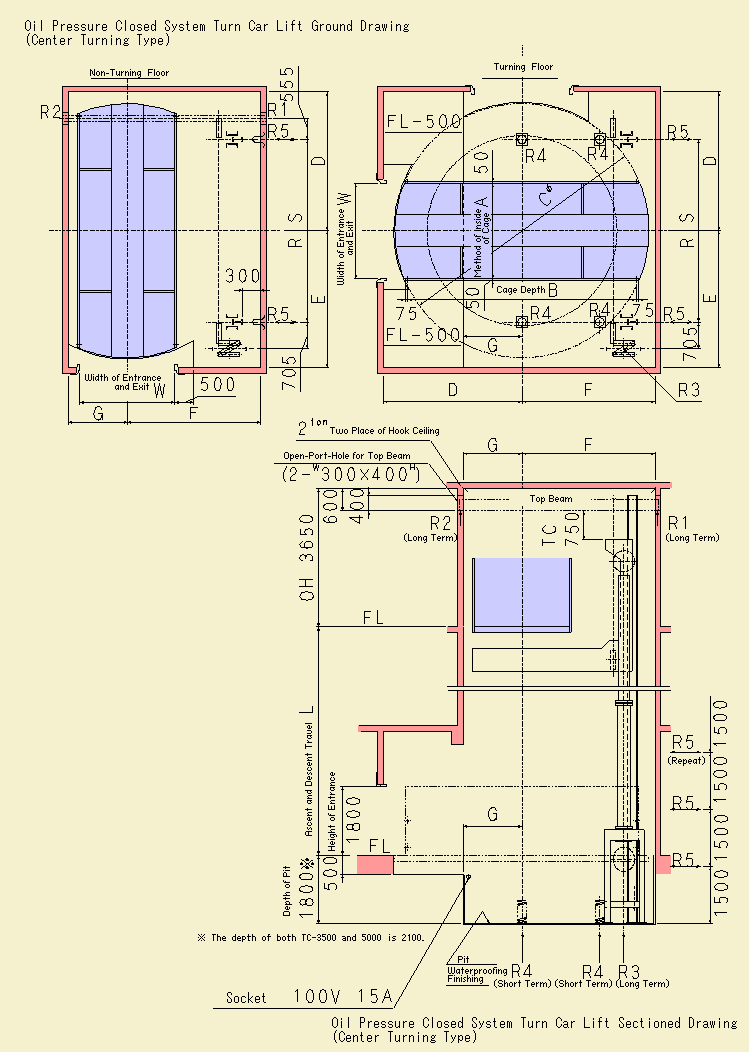

Standard Dimension Drawing
Drawing
Specification Dimension Chart
Specificaiton List
Oil Pressure Closed System 180°Turning Type

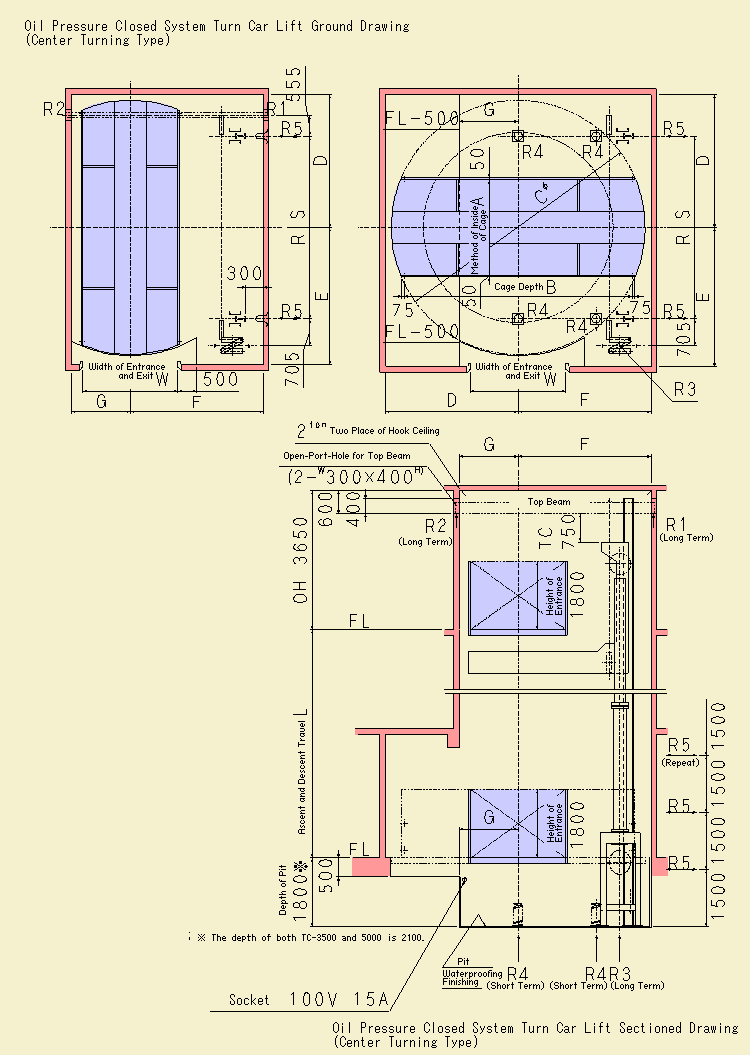

Standard Dimension Drawing
Drawing
Specification Dimension Chart

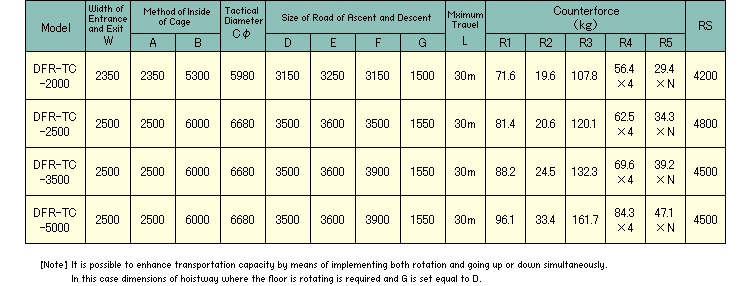

Specificaiton List(DFR-TC-2000/DFR-TC-2500/DFR-TC-3500/DFR-TC-5000)
Next Page
