Elevator
Elevator for Bed Machine-Roomless

* By means of eliminating the machine room its space is effectively utilized.
* Low cost, low noise and energy-saving are realized due to the machine room less structure.

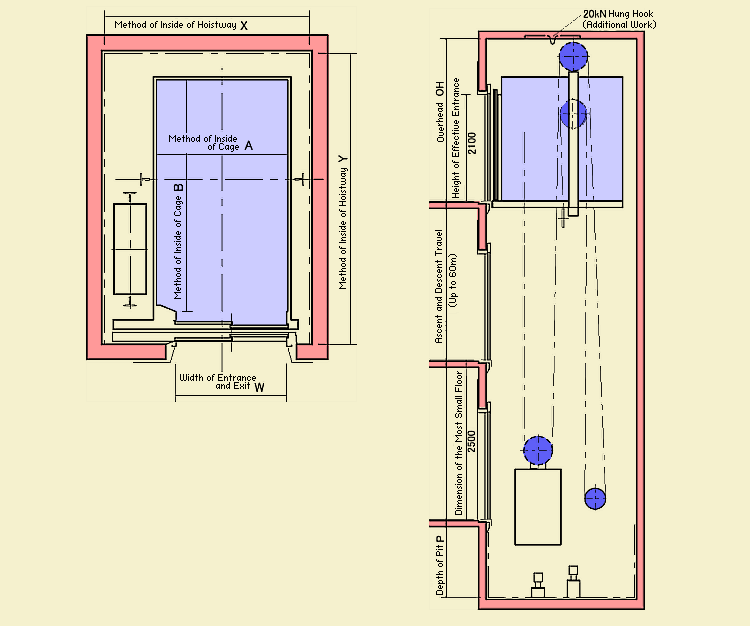

Standard Dimension Drawing
Drawing

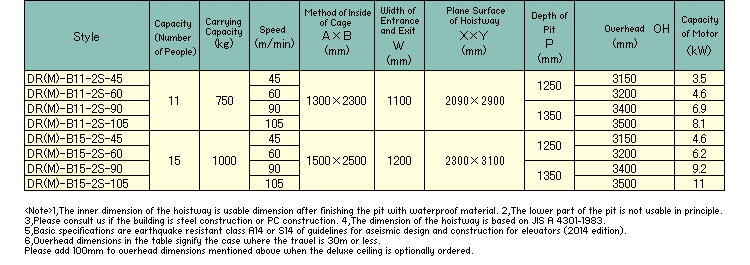

Specification Dimension Chart

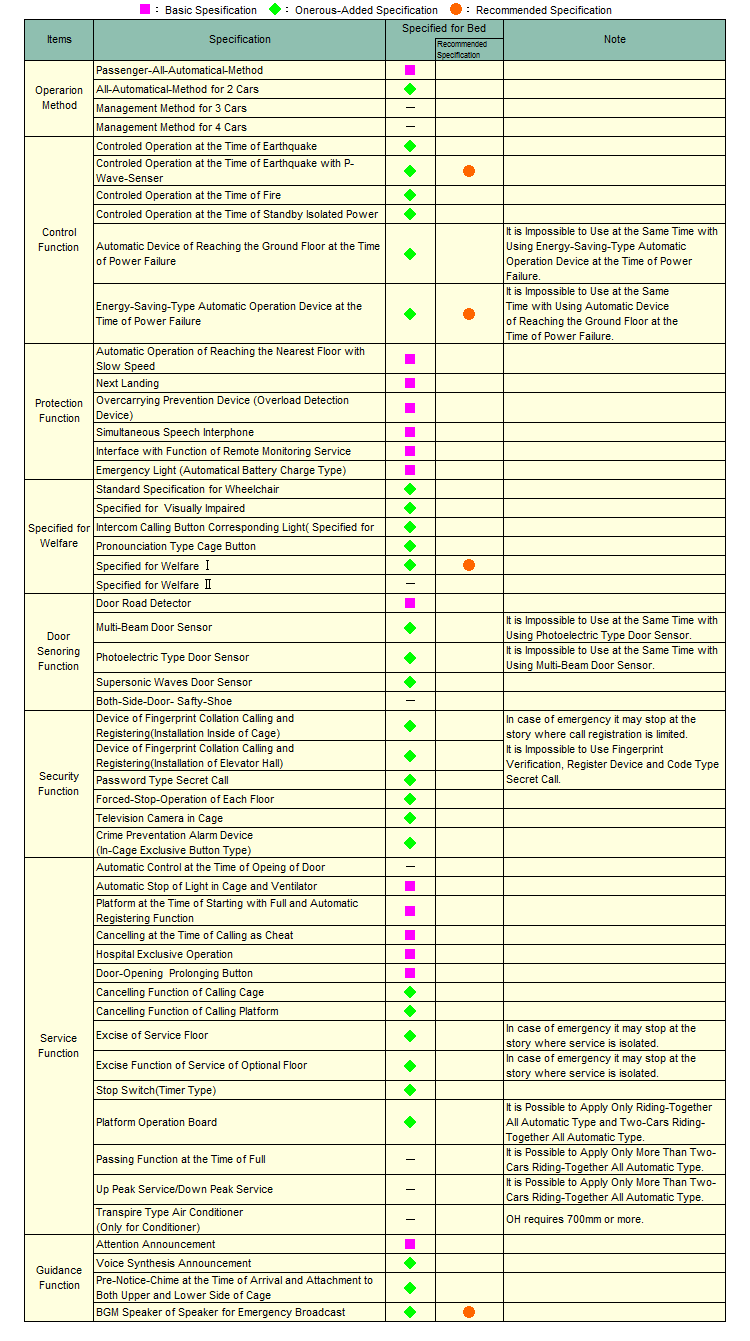

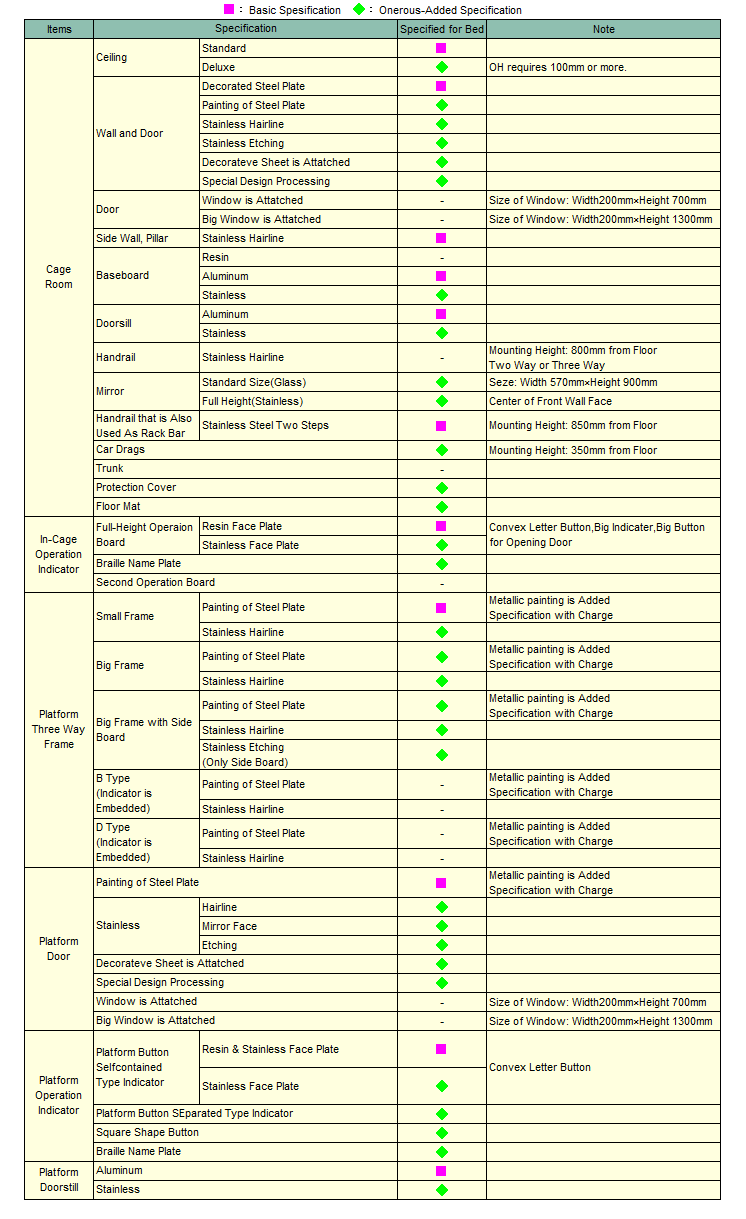

Specificaiton List(DR(M)-B11-2S-45/DR(M)-B11-2S-60/DR(M)-B11-2S-90/DR(M)-B11-2S-105/DR(M)-B15-2S-45/DR(M)-B15-2S-60/DR(M)-B15-2S-90/DR(M)-B15-2S-105)


Next Page
