Ship Lifting Type | Multistory Parking Space for Ship

We prepare a wide variety of products corresponding to types of boats and superimposed loads and in addition automatic measuring equipment of the height of tides is originally equipped.
It enables optionally to operate by remote control through a radio wave and it is easily installed because private power supply type eliminates power source installation work.

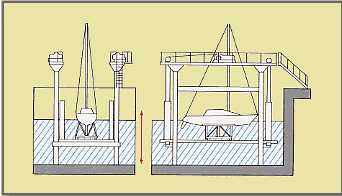

For Carrying Weight 15, 10, 5, 3 ton In this method a slipway with four wheels is mounted on a table which is guided by four pillars and the boat is landed by this system It features that four guide poles installed at four corners of the table enables a boat easily to be landed.

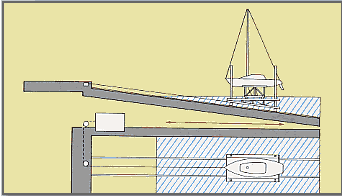

For Carrying Weight 15, 10, 5, 3 ton In this system a cradle is mounted on rails installed on a chute in the sea and a boat on the mount is landed by winching wires and then the boat is handed to a folk lift. (Prevention of Over-Winding Equipment is Attatched)

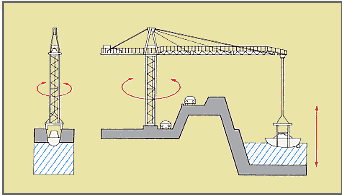

For Carrying Weight 5, 30 ton(For River) It enables easily to land a boat because the boast is controllable targeting furnished belts hanged from the tip of the crane and the floating pier. There are two types, rotation type and fixed jib type. Please select appropriate one for your situation. In addition a safety device which stops operation automatically in case that wind velocity is more than 8m is equipped.

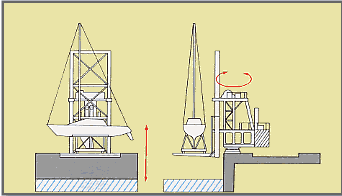

For Carrying Weight 20, 15, 10, 5, 3 ton In this system a boat is landed by the folk installed on pillars on a wharf while the boat is rotated. It enables a boat to mount on the cradle easily because the boat is controlled as paralleling to the wharf. We prepare a wide variety of products, ranging from light weight to heavy weight.

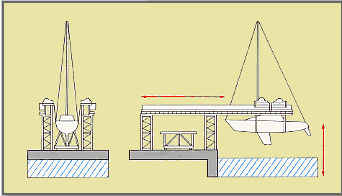

For Carrying Weight 25, 15, 10, 7, 5 ton In this system a boat is landed by belts which are hanged from the landing arm protruding to the sea. It may be required to maneuver the boat skillfully because the boat enters from the right angle to the wharf and it was affected by tidal streams, but in this case by means of attaching a guide pole to the attachment part of belts on the tip it is easily maneuverable.
