Parking System
DAIKO Park BX Type

DAIKO park BX type utilizes long and narrow space effectively and enables the limited space to install parking lots with sufficient storage number of vehicles.
Pallets are linked side by side and moved in the traverse direction simultaneously and lifts which are installed in both ends of the traverse direction go up and down and circulate vertically.

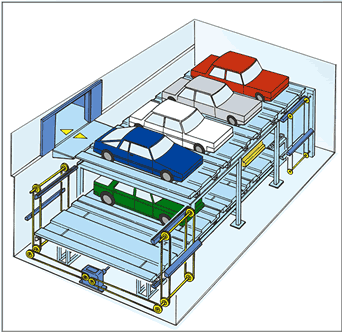

The illustration depicted on the right hand side is a planning example of middle embarkation type with two layers.
Apart from this there is upper embarkation type and it is possible to arrange depending on properties and buildings.

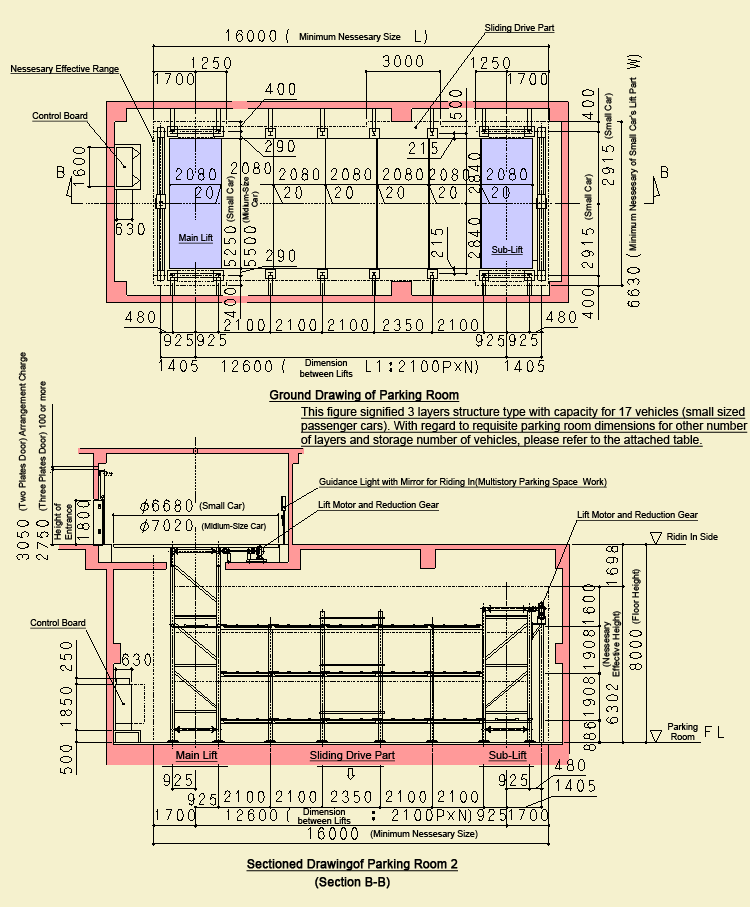

Standard Dimension Drawing
Drawing

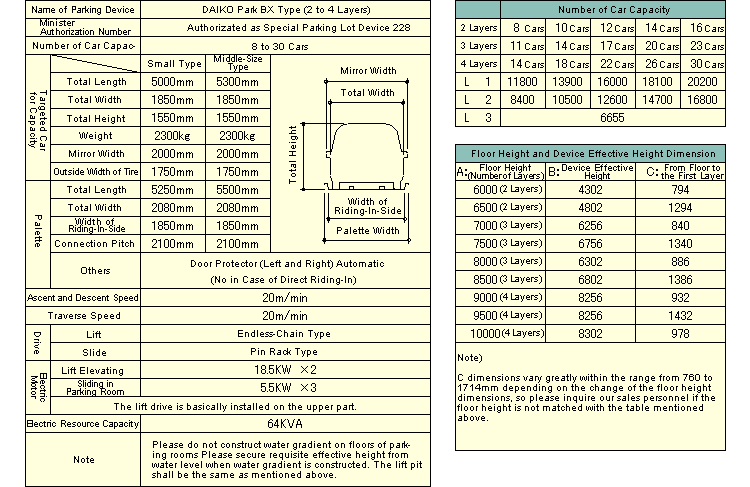

Specification Dimension Chart
Specificaiton List(DIKO Park BX Type (2 to 4 Layers))
Next Page
