Elevator
Elevator for Office Machine-Roomless

* By means of eliminating the machine room its space is effectively utilized.
* There is no difficulty with arrangement of the hoistway or the machine room and it is possible to arrange freely due to the machine room less structure.

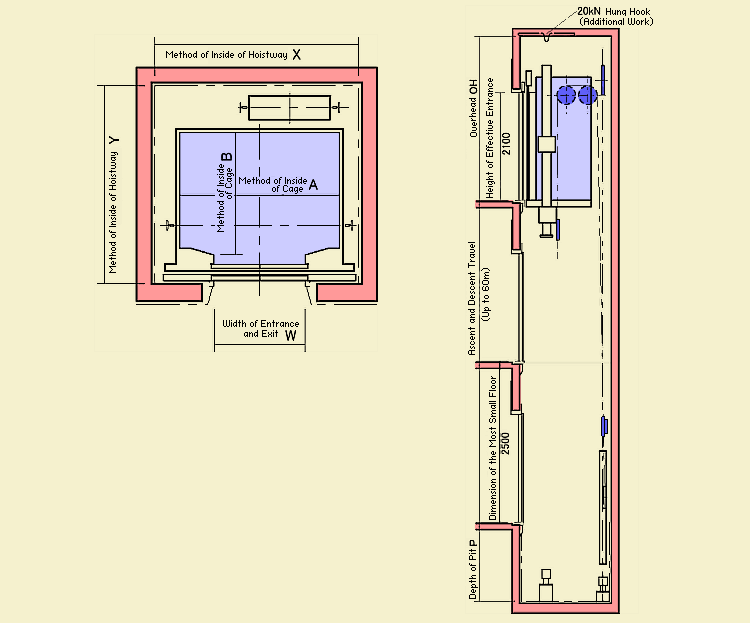

Standard Dimension Drawing
Drawing

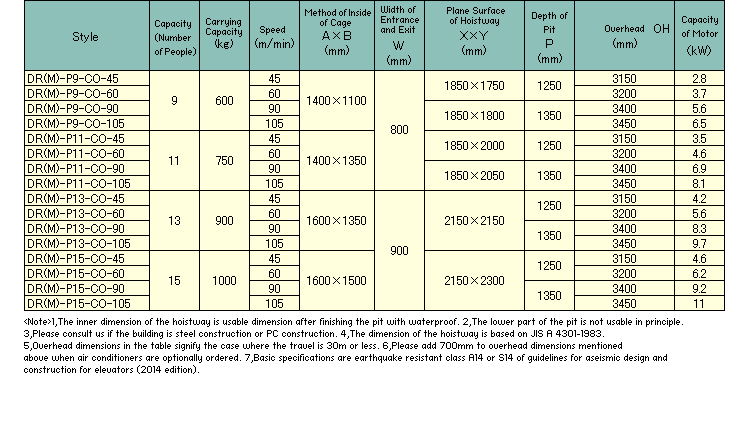

Specification Dimension Chart
Specificaiton List(DR(M)-P6-CO-45/DR(M)-P6-CO-60/DR(M)-P6-CO-90/DR(M)-P6-CO-105/DR(M)-P9-CO-45/DR(M)-P9-CO-60/DR(M)-P9-CO-90/DR(M)-P9-CO-105/DR(M)-P11-CO-45/DR(M)-P11-CO-60/DR(M)-P11-CO-90/DR(M)-P11-CO-105/DR(M)-P13-CO-45/DR(M)-P13-CO-60/DR(M)-P13-CO-90/DR(M)-P13-CO-105/DR(M)-P15-CO-45/DR(M)-P15-CO-60/DR(M)-P15-CO-90/DR(M)-P15-CO-105)

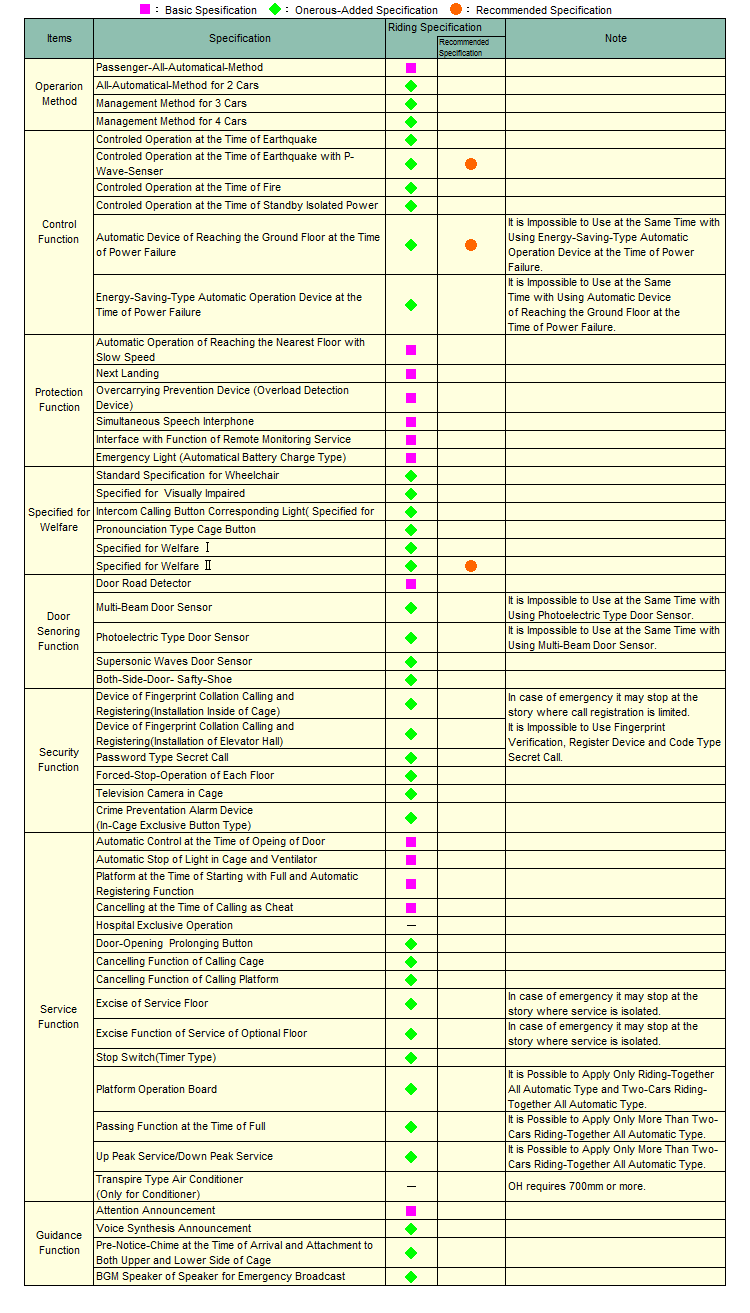

Specificaiton List

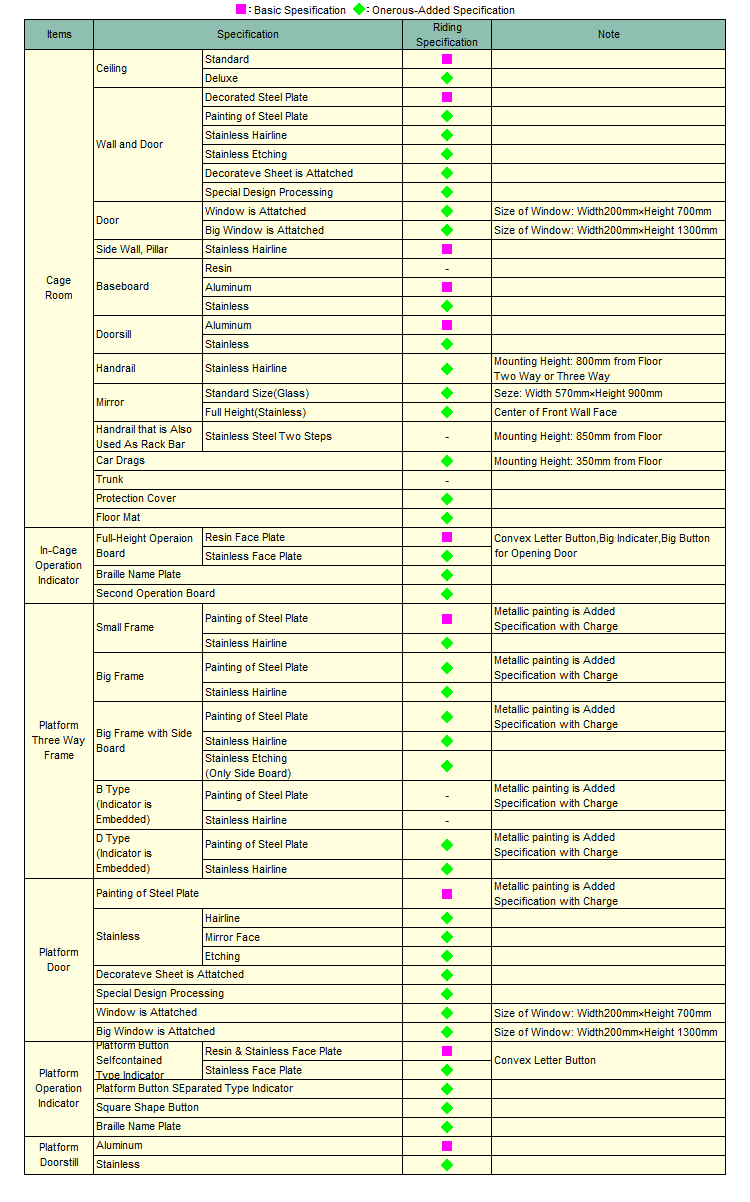

Specificaiton List
Specificaiton List
Next Page
